ALUMINIZED STEEL SHEET


(ALUMINUM COATED SHEET TYPE 1 AND TYPE 2)

Introduction to Aluminized Steel Sheet

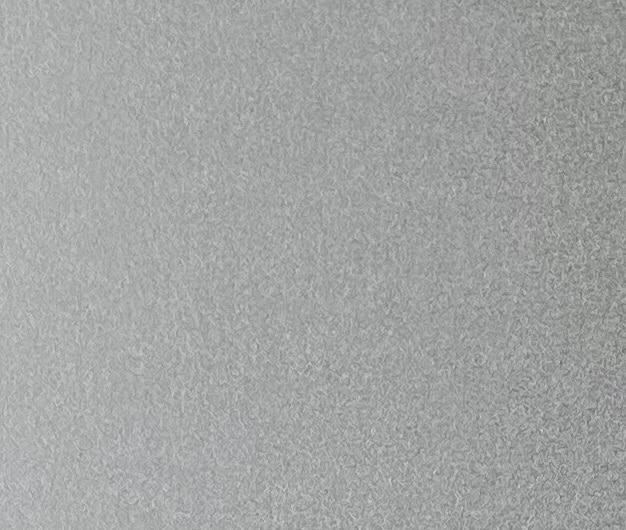

Utilizing WHEELING-NIPPON STEEL's patented steel coating process allows us to obtain an aluminized finish with an overall uniform and consistent minimized spangle aluminized surface appearance. Our aluminized metal sheet is known for its outstanding flatness and drawability properties. WHEELING-NIPPON STEEL's aluminized steel sheet is recommended for applications requiring severe heat protection and corrosion resistance. WHEELING-NIPPON STEEL's Type 1 and Type 2 aluminized sheet steel is produced to ASTM A463 specifications.

Aluminized Steel Sheet Applications

Due to aluminized steel sheet's heat resistance capabilities, it's a great candidate for HVAC and other heat-centric applications, including:

  • Heat Exchangers
  • Commercial Roof top HVAC units
  • Automotive mufflers & exhaust systems
  • Heat shields
  • Ovens
  • Water Heaters
  • Baking pans
  • Pipe wrap
  • Culvert
  • Tubing
  • ... and many more

Key Features of Aluminized Steel Sheet

  • Corrosion protection
  • Excellent heat resistance
  • Excellent flatness and formability
  • Wide range of sizes and specifications available

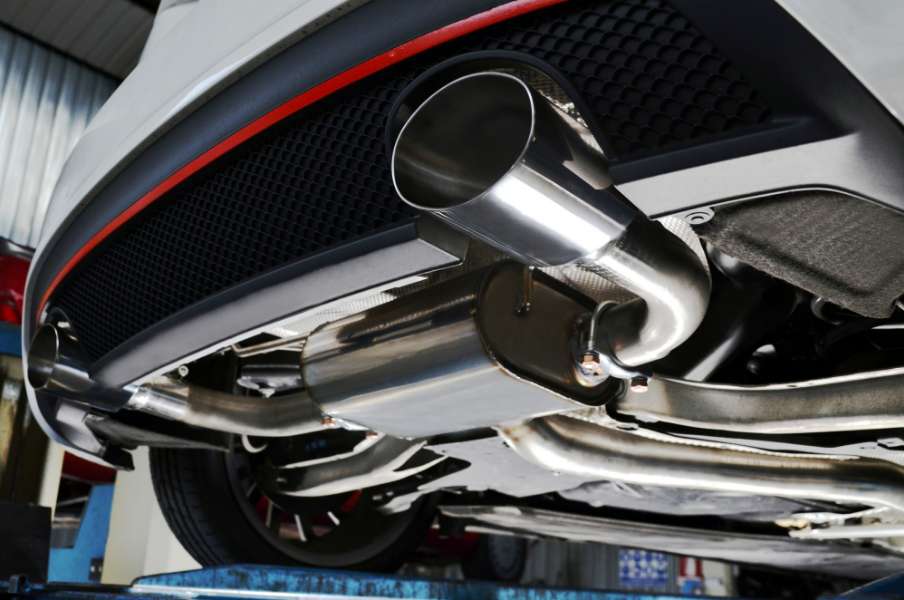

Aluminized Steel Sheet | Aluminized Steel vs. Stainless Steel | Car Muffler with Aluminized Aluminized Steel Sheet | Aluminized Steel vs. Stainless Steel | Stove with Aluminized Steel Aluminized Steel Sheet | Aluminized Steel vs. Stainless Steel | Fireplace with Aluminized Steel

Aluminized Specifications

Material Thickness 0.014" through 0.130"
Material Width 24" through 61"
ASTM Specification ASTM A463
Steel Grades
Commercial Steel Deep Drawing Steel
Extra Deep Drawing Steel Forming Steel
HSLA Steel Grades
Coating Weight
T1-13 T1-25 T1-40
(Type 2 and UL Coating Weights available and other coating weights may be available. Please inquire)
Coil Weight 10,000 lbs. minimum through 55,000 lbs. maximum
Coil ID 20" and 24"
After Treatment
(upon request)
Chemical Treatment (RoHS Compliant Available)
Oiling
Acrylic (RoHS Compliant, Please Inquire)
Stenciling
